| Image Sensor: | 1/2.8″Sony415 8MP CMOS |
| Signal System: | PAL/NTSC |
| Min. Illumination: | Color: 0.05lux @(F1.2, AGC ON), 0 lux with IR |
| Shutter Time: | 1/25 s to 1/100,000 s |
| Lens: | 2.8mm |
| Day&Night: | Dual light, Deterrent, IR, cut filter with auto switch |
| Image Enhancement: | BLC/3D DNR/D-WDR |
| Detection | VCA, Human, Vehicle, Line, Intrusion, Face |
| Privacy Protection | Support(4 Self-customized Areas) |
| Water-Proof: | IP66 |
| Illumination for Infrared Switching: | 0.5~3Lux |
| Infrared Wavelength: | 850nm |
| Minimum Illumination: | 0 Lux(IR ON) |
| IR Range: | 30pcs LEDs//35m IR |
| Compression Standard | |
| Video Compression: | H.265/H.264/MJPEG |
| Video Bit Rate: | 32Kbps~12Mbps(CBR/VBR Selectable) |
| Audio | 2-Way Audio, Compression: G711U/G711A |
| Dual Streams: | Yes |
| Triple Streams: | Yes |
| Image | |
| Max. Image Resolution: | 3840*2160(8MP)@20fps |
| Frame Rate: | 50/60Hz:2592*1944@20fps,(2560*1920/2304*1296/2048*1536/1080P/960P/720P/D1)@20fps |
| Sub Stream: | 50Hz/60Hz: (720*480/VGA/640*360/480*360/CIF)@20fps |
| Third Stream(Mobile Stream): | 50/60Hz: (1080P/720P/CIF)@5fps |
| Image Settings: | 3D NR, D-WDR, Image Flip, Saturation, Brightness, Contrast, Sharpness adjustable via client software, web browser or Smartphone App |
| Day/Night Switch: | Dual light, Deterrent Light, White Light, IR, Auto(Passive Mode)/Day/Night/Auto(Active Mode)/Time |
| Network | |
| Network Protocols: | HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE,RTMP, DDNS, IP Search, IP camera, DVR, NVS and etc.) |
| General Function: | Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark |
| System Compatibility: | ONVIF(17.06 ) profile S/(P2P) |
| On-line Viewing | Max. Support 6 Users Simultaneously |
| Interface | |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet Interface |
| RCA Audio Interface: | RCA Audio input/output Interface (Optional) |
| DC Power Plug: | DC Power Female Interface |
| General | |
| Operating Conditions: | -10 °C ~ 60 °C |
| Humidity 95% or less (non-condensing) | |
| Power Supply: | 12 V DC ± 10%/PoE |
| Power Consumption: | 12 VDC ± 10%, Max Power Consumption Less than 10W (When the infrared lamps turn on) |
| Weight: | 1.00KG |
Network IP Cameras

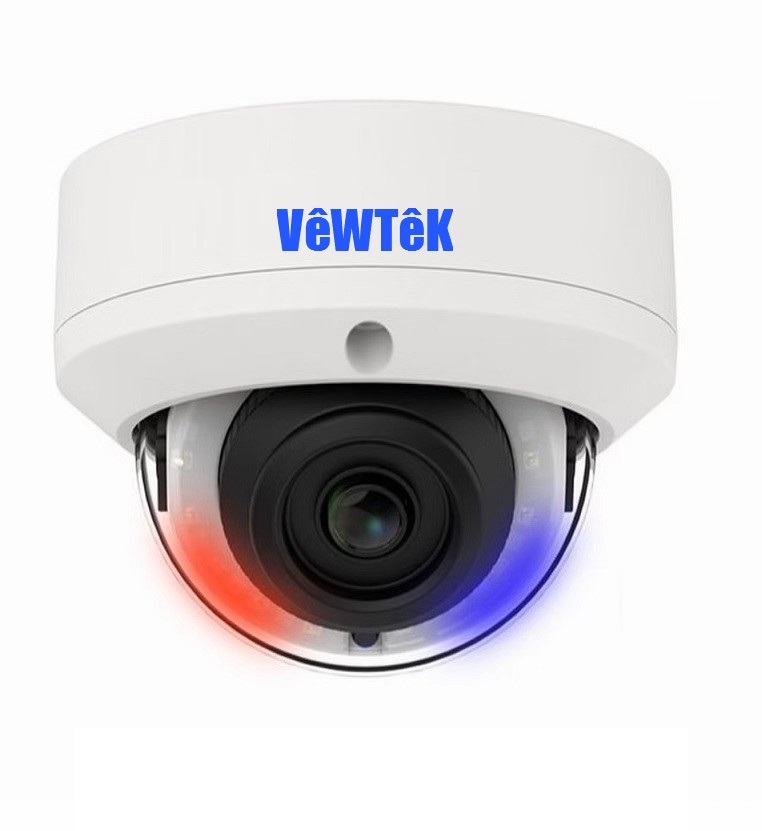

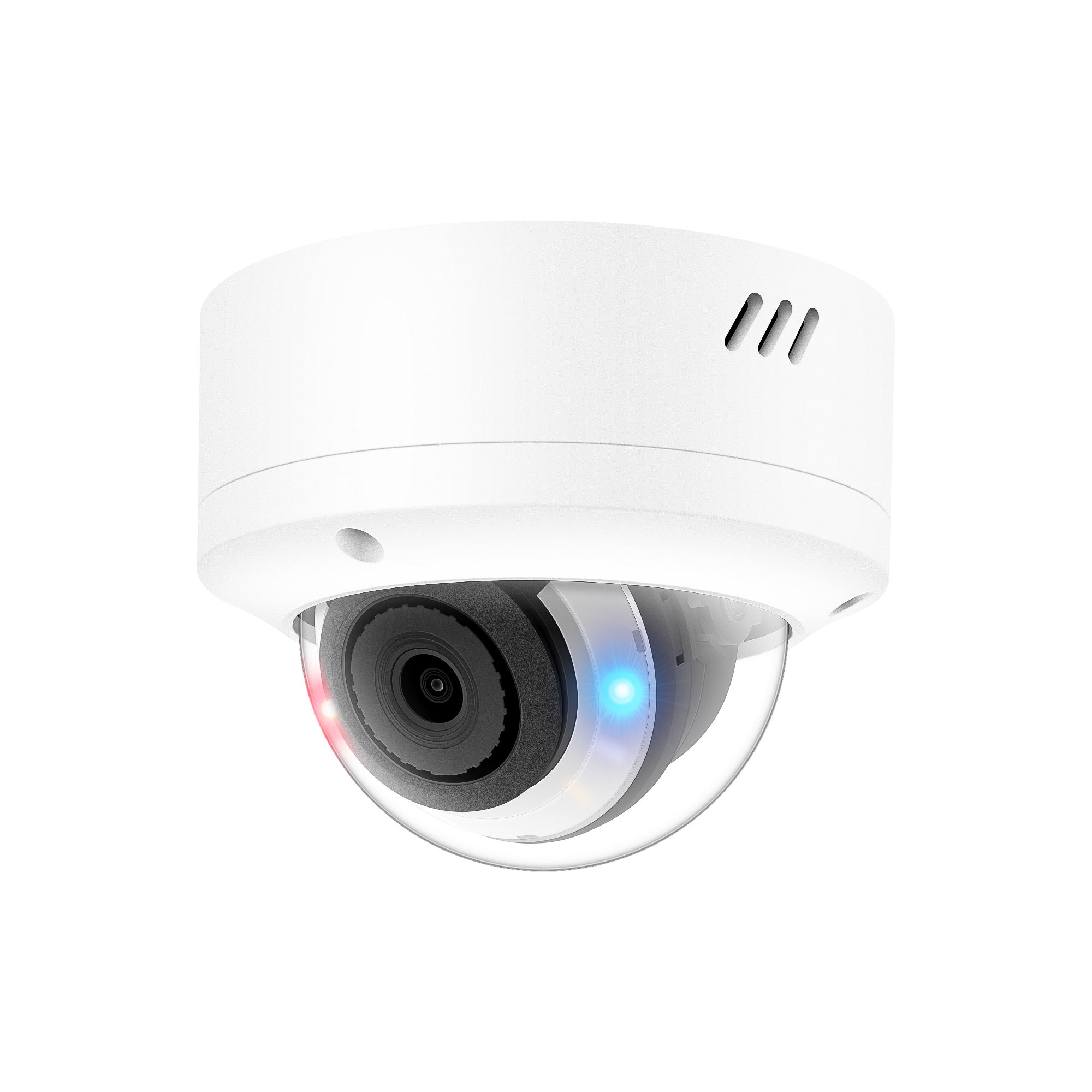

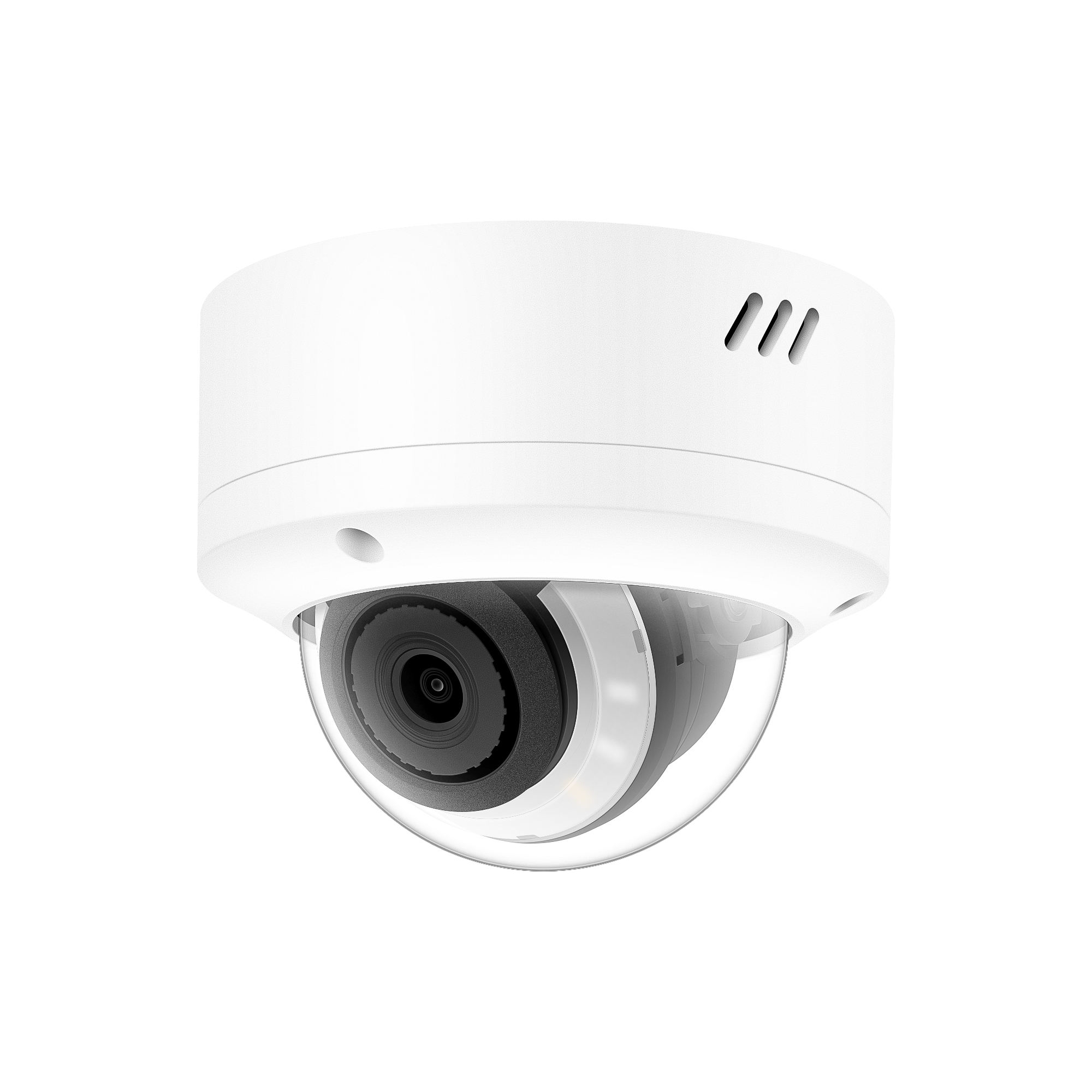

VT-HBB55N
Vandal dome camera, also known as high-security cameras, have anti-impact cameras, anti-shock cameras, and anti-vandal cameras. Our vandal dome camera shells are made of cast aluminum, which is sufficient to resist the impact of general strength. The protective cover of the vandal dome camera has a certain degree of impact resistance and must have anti-disassembly performance. In general, the protective cover of vandal dome camera uses hexagon socket screws, which are difficult to open without using a professional screwdriver. As the name implies, vandal dome camera is a camera that can still ensure the normal operation of its components even under external violent attacks. The characteristic is that its shell has strong impact resistance.
