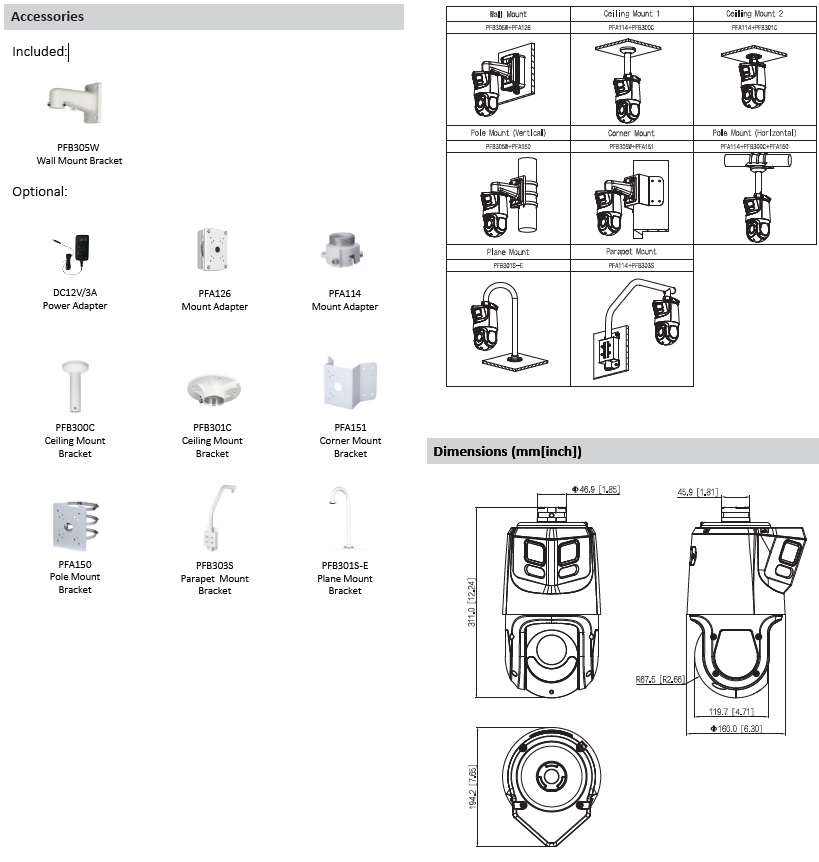

VT-25XPTZN-OV - Image 3

VT-25XPTZN-OV

Overview channel:

Outputs 180° wide angle splicing image·

Detail channel:

1/2.8″4Megapixel STARVIS™ CMOS

·25x optical zoom·Max. 25/30 fps@8M

·IR distance up to 100m

·Auto tracking 3.0

·Smart tracking

·Perimeter protection

·Active deterrence

·Smart dual light +

System Overview

Designed with more lens than the conventional PTZ camera, the X-Spans series camera captures an expansive view, producing wide, vivid images. It has the combined power of the panoramic and detail camera in its structure and is highly cost-effective, greatly reducing the installation cost of security systems. It also leverages its two cameras to perform smart tracking, and has an independent mode that allows you to separately use each camera.

Functions – Starlight

Technology For challenging low-light conditions, Starlight Ultra-low Light Technology has exceptional light sensitivity, capturing images in vivid de-tail, even in lighting as low as 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, producing clear images in dark environments. Smart Codec With advanced scene-adaptive rate control algorithm, smart codec technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Perimeter Protection

Automatically filters out false alarms caused by animals, rustling leaves, bright lights, and more, and uses secondary recognition during target detection to improve alarm accuracy

Auto Tracking

This feature controls the pan, tilt and zoom actions of the camera to automatically track an object in motion, to keep it in view of the camera. Tracking can be triggered manually or automatically by defined rules. Once a rule is triggered, the camera can zoom in and track the defined target automatically.

Smart Tracking

The panoramic camera links with the detail camera to track targets. When the target enters the panoramic area, the detail camera starts to monitor them and tracks their movement by rotating, zooming and focusing the PTZ camera lens. This allows the camera to produce highly detailed images with the movement of targets for security personnel.

Smart Dual Light

Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the white light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the white light is off and the IR illuminator is on, which reduces light pollution efficiently.

Protection

(IP66, TVS 6000 V)IP66, TVS 6000 V lightning proof, surge protection, and voltage transient protection

Category:

Technical Specification
Camera
Image Sensor
Overview channel: 1/2.7″ CMOS; Detail channel: 1/2.8″ CMOS

Pixel
Overview channel: 8 MP; Detail channel: 4 MP

Max. Resolution
Overview channel: 4096 (H) × 1860 (V); Detail channel: 2560 (H) × 1440 (V)

ROM
Overview channel: 4 GB; Detail channel: 4 GB

RAM
Overview channel: 2 GB; Detail channel: 1 GB

Electronic Shutter Speed
1 s–1/30,000 s

Scanning System
Progressive

Min. Illumination
Overview channel:
0.005 [email protected] (Color, 30 IRE);
0.0005 [email protected] (B/W, 30 IRE);
0 lux (illuminator on)

Detail channel:
0.005 [email protected] (Color, 30 IRE);
0.0005 [email protected] (B/W, 30 IRE);
0 lux (illuminator on)

Illumination Distance
Overview channel: 30 m (98.43 ft) (IR); 30 m (98.43 ft) (white light); Detail channel: 100 m (328.08 ft) (IR); 50 m (131.23 ft) (white light)

Illuminator On/Off Control
Overview channel:
Manual; Auto; Off
Detail channel:

Zoom Prio; Manual; Auto; Off

Illuminator Number
Overview channel: 2 (IR light); 2 (White light); Detail channel: 2 (IR light); 2 (Warm light)

Lens Focal Length
Overview channel: 2.8 mm; Detail channel: 5 mm–125 mm

Max. Aperture
Overview channel: F1.4; Detail channel: F1.6-F3.6

Field of View
Overview channel: H: 180°; V: 86°; Detail channel: H: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7°

Optical Zoom
Overview channel: NA; Detail channel: 25×

Focus Control
Auto; manual; semi-auto

Close Focus Distance
Overview channel: 0.6 m (1.97 ft); Detail channel: 0.1 m–0.5 m (0.33″–1.64″)

Iris Control
Overview channel: NA; Detail channel: Auto; manual; iris prio

PTZ Pan/Tilt Range
Pan: 0° to 360° endless
Tilt: –15° to +90°, auto flip 180°

Manual Control Speed
Pan: 0.1°/s–180°/s;
Tilt: 0.1°/s–90°/s

Preset Speed
Pan: 0.1°/s–180°/s;
Tilt: 0.1°/s–90°/s

Power-off Memory
Yes

Idle Motion
Preset; Pattern; Tour; Scan

Intelligence
IVS (Perimeter Protection)
Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification; linkage tracking

SMD 4.0
Active Deterrence
Light Warning
Red-Blue light warning;
Flash duration: 5 s–30 s;
Flash frequency: high, medium, low

Sound Warning
Offers 11 sound alarm and 10 custom sound alarms can be imported.
Sound can be set from 0%–100%.
Play times can be set from 1-10.

Video
Video Compression:
Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)
Streaming Capability:
3 streams

Resolution
Overview channel: 8M (4096 × 1860); 2M (2048 × 928); 1080p (1920 × 1080); 720p (1280 × 720); 1024 × 448; D1 (704 × 576/704 × 480);VGA (640 × 480);CIF (352 × 288/352 × 240); Detail channel: 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480);VGA (640 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate
Overview channel:
Main stream: 4096 × 1860 @(1–25/30 fps)
Sub stream 1: 1024 × 448/D1/VGA/CIF @(1–25/30 fps)
Sub stream 2: 2048 × 928/1080p/1.3M/720p @(1–25/30 fps);

Detail channel:
Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps)
Sub stream 1: D1/VGA/CIF @(1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p/ @(1–25/30 fps)
Bit Rate Control
CBR/VBR

Video Bit Rate
Overview channel:
H264: 128 kbps–16,384 kbps
H265: 51 kbps–13,312 kbps;

Detail channel:
H264: 96 kbps–16,384 kbps
H265: 38 kbps–10,240 kbps

Day/Night
Overview channel: Auto; Color; B/W; Electronic
Detail channel: Auto; Color; B/W; Electronic
